SPECIALIST DOUBLE SIDED - MULTI-PURPOSE
Foams
Low Energy Plastics
Metals
Metal Nameplates
Plastics + Decals
Specialist - 3M Cushion Mount
TM
Optically Clear
Papers
Woods &Timbers
These tapes are engineered for various substrates where excellent adhesion is sought
especially by the Automotive, Aerospace, Construction and Electronic markets. Some
products are ideal for outdoors including ones for low energy materials.
Tapes designed for foam based
materials varying in cell densities.
Enables easy laminations to other
foams or other substrates.
A selection of tapes with high
initial tack that improves the bond
performance including those
suitable for high temperatures.
Industry standard ‘adhesive transfer’
but ‘normal’ wound. Retains
aesthetic looks - no glue-lines. Ideal
for badge assembly, decorative
trims and sticking mismatched parts
together.
Assor ted selection of tape types
formulated for plastics including
Acrylics, Polyesters, Plasticised
PVC’s &Vinyls.
Tapes made not only for aesthetic
looks but where clarity is
paramount in furniture or perspex
/ acrylic displays.
High adhesion tapes for use with
coated papers or corrugated
boards under stress when used
with the ‘flying splice’ process.
Repulpable versions available that
dissolve and recycle in the broke.

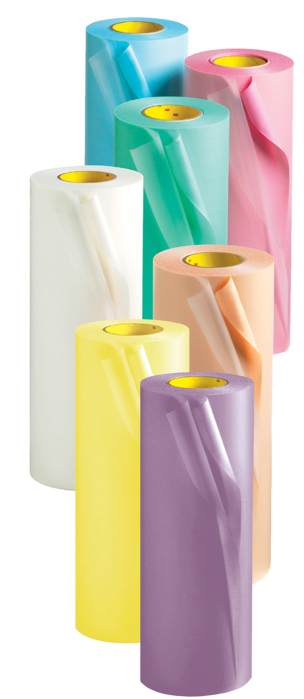

3M has outstanding performance stereo tapes to use with cylinder plates
in flexography. Its unique construction of fluted channels prevents air
entrapment eliminating print blemishes. It gives top results and the plates are
simple to remove once a corner is lifted allowing air to return.
Adhesive transfer or polyester
carrier tapes achieving good results
on close grain and coarser surfaces.
Works best after priming.
more product details on
www.finecal.co.uk
4
11
series
19
series
13
series
10
series
15
series
17
series
18
series
The pictograms show the typical
relationship between dots and solids
for each tape type
• Easier plate removal
• Use with larger diameter
print cylinder
• Use with thinner plates
E112 E1920 E1320 E1020 E1520 E1720 E1820
0.50mm
E1115 E1915 E1315 E1015 E1515 E1715 E1815
0.38mm
E1040
1.00mm
E1060
1.50mm
• Higher plate side adhesion
• Use with smaller diameter
print cylinder
• Better results with thicker plates
E1120H E1920H E1320H E1020H E1520H E1720H 1820H 0.50mm
E1115H
High
quality
process
and screen
work
Process
and
halftones
predominate
Solids and
halftones
equally
important
faster press
speeds
Solids and
halftones
equally
important
Solids in
combination
with
halftones/
line reverses
at higher
press speeds
High
quality
process
and screen
work
Mostly
solid lines
or text
E1915H E1315H 1015H E1515H 1715H E1815H 0.38mm
Specially constructed formulations
that cope with non-friendly
surfaces such as polypropylenes or
polyethylenes.
Advice / Samples / Procurement: ring 0117 971 1111 or 029 2046 2644. E-mail sales@finecal.co.uk
SPECIALIST DOUBLE SIDED - FOAM BASED
3M DUAL LOCK
TM
RECLOSEABLE
FASTENERS
VELCRO
®
HOOK & LOOP
Incorporating 3M Scotchmate
TM
products, Dual Lock
TM
can be
opened and closed 100’s of times.
Available in plain or adhesive-
backed, it offers simplicity for
holding materials together and
pulling apart. Service pipes / boxed
electrical covers, automotive or
garment use, 3M Dual-Lock
TM
provides
solutions for multi-task fixings and aesthetic retention:
it’s the sure winner!
Since the late 50’s,Velcro has become synonymous
with fasteners & hundreds of uses in both domestic
and industrial environments.
Exhibition, Electronic, Garden
Centre and Office markets
have had many fastening
concerns solved by using Velcro
for permanent or temporary
fixings. Available in dot form
too for convenience.
Acrylic Based
Ref
Features
Polyethylene based
Ref
Features
Urethane based
Ref
Features
Synthetic foam designed for
technical applications particularly
on PVC with plasticised
migration properties. Suitable for
Automotive, Marine or Window
assembly such as attaching trims
reliably, dampening noise or
preventing corrosion.
3M 4430 High Grab general purpose acrylic tape. 0.8mm thick
3M 4614 Clear foam acrylic adhesive good for Point of Sale work on
clear materials. 0.8mm thick
3M 4658 Clear conformable closed cell foam acrylic adhesive which
removes cleanly. Good for stainless steel. 0.8mm thick
H SERIES Foam tapes with acrylic / rubber adhesives designed for hard
surfaces and thermal movements. Ideal for Security Glazing &
Window Frame manufacture. 0.8 to 6.0mm thickness
Closed cell foam material with
acrylic or rubber adhesives.
Cushions, conforms and flexes to
the substrate offering solutions
for gap filling. Good temperature
resistance and great in shear. Low
cost range.
3M 9528
3M 9529
Good general rubber adhesive coated tape for non-demanding
work. Precut pads available. 0.8mm & 1.6mm thick
3M 9536 With rubber adhesive for general purpose work. 1.1mm thick
3M 9546 Modified acrylic UV resistant adhesive with initial high tack.
Can be used outdoors. 1.1mm thick
Command
Strips
Adhesive strips with stretchable backing from 3M. Use for
attaching to walls - no surface or paint damage. Removes easily.
Open cell foam with acrylic high
temperature adhesive. Excellent
in shear. Suitable for indoor use or
outside if protected.
3M 4008 Mounting interior signs or acoustic panels. 3.2mm thick
3M 4026 Hanging soap dispensers / air fresheners to tiles. 1.6mm thick
3M 4032 Attaching wire clips to various surfaces. 0.8mm thick
more product details on
www.finecal.co.uk
Advice / Samples / Procurement: ring 0117 971 1111 or 029 2046 2644. E-mail sales@finecal.co.uk
5
Our foam tape range performs well especially on irregular surfaces or joints
where holes or voids may be present. Its nature is to distribute stress so that
mismatched materials bond evenly whilst preserving natural movements.
Acrylic - highly durable, UV resistant and good ageing
proper ties - ideal for external use.
Rubber - speedy initial adhesion, exellent sound / vibration
dampening qualities. Use for internal applications.
Adhesive
Types
