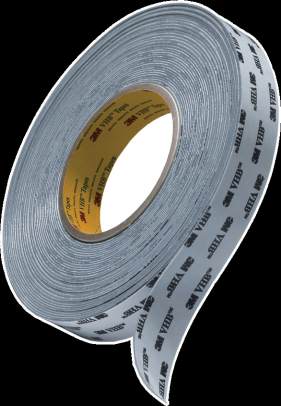

STRUCTURAL DOUBLE SIDED - VHB
TM
TAPES
VHB
TM
- (Very High Bond) represents over 30 years of product success and
is the global leader for successful solutions in the construction, metal
fabrication and sign-making industries. Now the next generation of
VHB
TM
has arrived from 3M!
VHB
TM
RP: Right product - Right performance - Right price
• Attaching lenses
• Bonding stiffeners to boards & plates
• Attaching cladding
• Attaching electronic assembly parts
• Fitting service panels • Hanging signs & displays
Bonds superbly to metals, glass and plastics. Does away with unsightly
fasteners such as rivets, screws or glue overspills and enriches the
aesthetics. It’s also the answer for extreme climates.
Material Guide for using withVHB
TM
The “Essential Surface Preparation Guide” for applyingVHB
TM
tapes & Foam tapes.
• Ensure surface is clean and dry all over.
• Best prepared by wiping (one direction only) with 3MVHB
TM
cleaner in conjunction with 3M Surface wipes.
• If heavy oils or greases are present, eliminate these with a degreasing with 3M Citrus Cleaner.
Follow up with 3MVHB
TM
cleaner.
• Use 3M 7447 Scotch-Brite
TM
hand pads for abrading / scuffing harder materials to increase the surface area for
bonding. Follow up with 3MVHB
TM
cleaner afterwards and allow to flash dry.
• For difficult plastics / painted items - especially low surface energy, use 3M 94 Primer.Wipe & allow to flash dry.
Substrate
Reference Material
* Ensure an appropriate seal is applied first such as 3M No 94, 3M 7819 wood primer or Silane for glass
Glass / Pottery
4941 / RP
4941 / 4910
Ceramics - Mirrors - Silver Backed
Glass* (4910 - water-clear VHB
TM
)
Metals including Electroplate 4611 / RP Aluminium - Brass / Copper* - Composite - Steel inc Stainless
Paint
5952
Domestic / Industrial Wall Paints - Plastisol Coatings - Powdered
Plastic
4941 / RP
4952
5952
ABS - Acrylic - Foamex - GRP - Polycarbonate - Polyester
Pressured Laminates - PVC - uPVC
Polyethylene - Polypropylene - Styrene (High Impact)
Stone
4943
4941
Concrete - Breeze Block - Cement / Concrete*
Plaster* - Marble - Corian
Fabrics
4611
Leathers / other Fabrics (check first)
Wood
4941
MDF* - Plywood (inc Marine)* - Timber*
Metals including Galvanized 9473 ‘isotack’
Bonds very tightly due to thin high performance adhesive line.
+ =
The metal cladding of the world’s
tallest hotel in Dubai, the Burj Al Arab,
is held together with VHB
TM
tape.
Chosen due to proven outstanding
performance as it withstands the
high prevailing temperatures and the
strong desert winds.
more product details on
www.finecal.co.uk
Advice / Samples / Procurement: ring 0117 971 1111 or 029 2046 2644. E-mail sales@finecal.co.uk
6

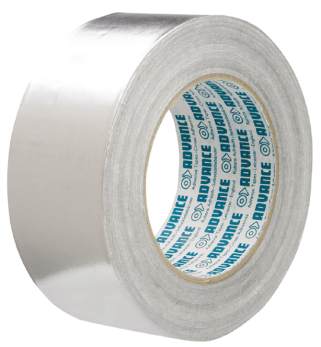

SINGLE SIDED - METAL BASED
SINGLE SIDED - CLOTH
From masking to surface protection; from gap filling to conductive
proper ties, this comprehensive range contains features to fulfil a variety
of job requirements with many benefits.
We keep high performance 3M brands and those required for general
purpose.
Moisture & chemical resistant: helps to seal & protect in final assemblies
and suitable for sensitive materials.
Thermally conductive: maximises overall efficiency and transference rate
over broad areas.
Heat & Light Sensitive: protects plastic components from distortions,
improves visibility by increasing reflectivity.
Specialist or general grades; from Gaffa
®
floor marking to
ground sheet splicing or protecting looms in Formula One
and race boats. High tack, water & abrasion resistant. Ideal for
masking road furniture prior to re-tarmacing or re-inforcing
packing crates for MOD approved establishments.
Ref Type
Thickness Adhesive Temperature Features
Ref
Type
Thickness Adhesive Temperature Features
AT502 Aluminium 30mµ Acrylic
-20°C to +110°C Class ‘O’ Flame self-extinguishing.
General Purpose. Easy unwind and tear.
1325 Aluminium 40mµ Acrylic
-20°C to +130°C Class ‘O’ Flame self extinguishing. No liner –
self wound. Easy to use on glazed units etc.
431 Aluminium 120mµ Transparent
Acrylic
-50°C to +150°C Resistant to moisture, dust, flame and some
chemicals. Excellent when paint stripping.
420 Lead
170mµ Green
Rubber
-54°C to +106°C Suitable for the electroplating process or
for moisture barrier needs. Electrical &
thermally conductive.
425 Aluminium 75mµ Acrylic
-54°C to +150°C Can be used for external work & for masking
e.g. prior to paint stripping applications.
1436 Aluminium 75mµ Rubber
-25°C to +70°C Easy release linered tape for holding &
sealing. Low flammability rating.
2552 Aluminium 380mµ Visco
Polymer
-25°C to +175°C Dead soft foil - absorbs vibration fatigue;
reduces panel noise.
AT Gaffa Cloth Close-
Weave
260mµ Rubber
Based
-10°C to +80°C Floor marking in studios, film sets & theatres
or fixing cables to reduce accidents.
AT142 Cotton Cloth 220mµ White
Rubber
-10°C to +60°C Acid free & biodegradable. Ideal for masking
metal parts inc. drain covers in road dressing.
AT169 Open Cloth 200mµ White
Rubber
-50°C to +65°C Easy unwind general purpose for temporary
sealing / splicing polyethylene sheeting.
AT175 Extruded
Cloth
230mµ White
Rubber
-50°C to +80°C Known too, as ‘tank-tape’ it’s suitable for
external use.Various colours, protects edges.
